PRODUCT CODE : SCC010030050

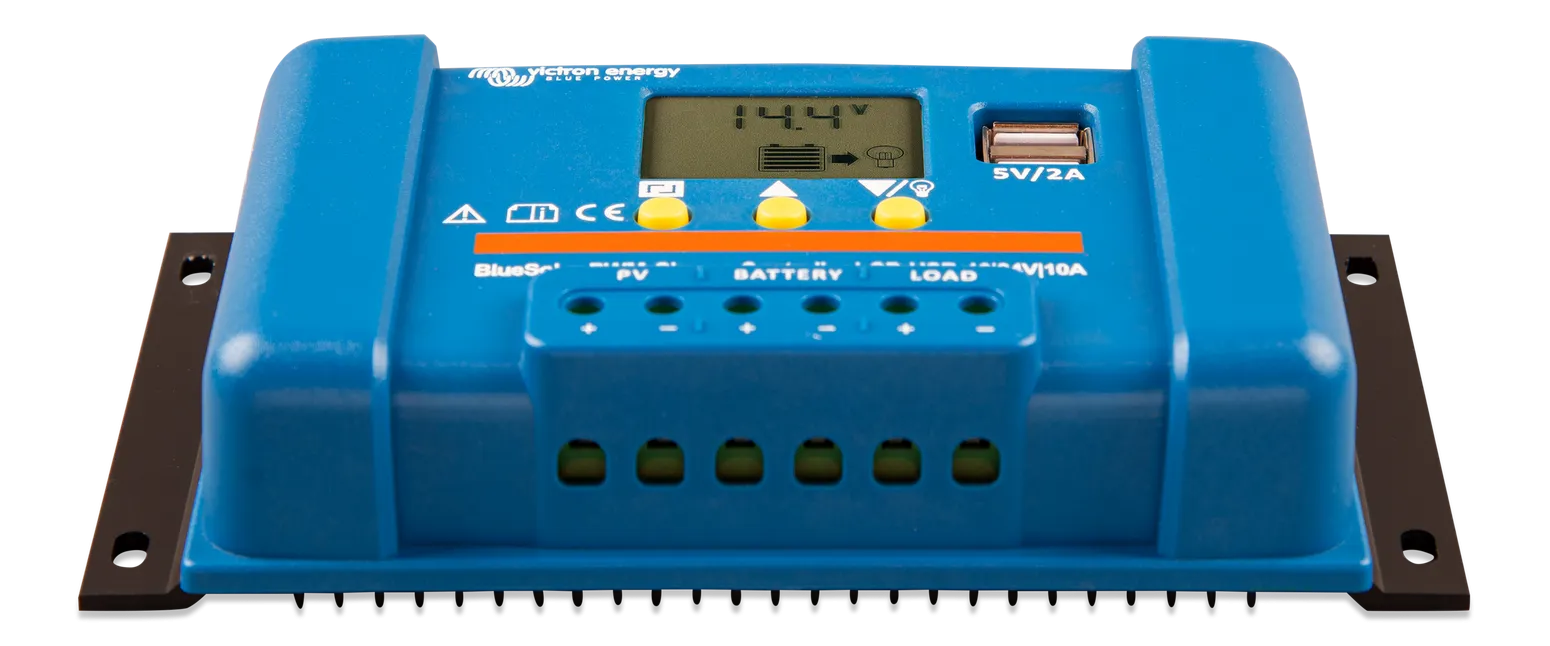

Note: 10A unit pictured for demonstration purposes.

• Liquid Crystal Display
• Two 5 Volt USB outputs
• Lighting control function, fully programmable
• Three stage battery charging (bulk, absorption, float), fully programmable
• Load output with low voltage and manual disconnect (programmable)
• Load output protected against over load and short circuit
• Protected against reverse polarity connection of the solar panels and/or battery

Liquid crystal display

For status monitoring and set-up

Load output

Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual. The connect and disconnect voltages are adjustable.

Day/night timing of the load output

This option allows for a pre-set ON-time after dusk.

Programmable battery charge algorithm

Pre-programmed algorithms for , , Flooded or (with internal BMS only) Two 5 Volt USB outputs Maximum current (both outputs combined): 2A
