VersaTie Aluminum Track - Recess Mount, Flanged (Series 4)

VersaTie Aluminum Track - Recess Mount, Flanged (Series 4)

$ 46.77

$ 60.80

Save: $

Title:
  • DefaultTitle
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

Product is sold in 8 foot lengths.

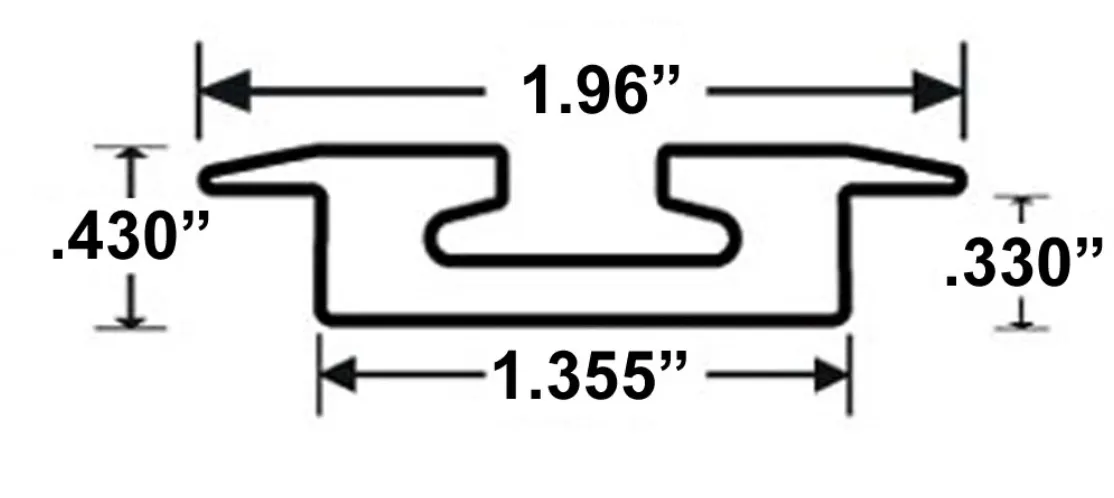

The VersaTie Series 4 track provides the low profile of a recessed track with the added protection of a surface flange, to cover the cut edges for a clean finish. This track works particularly well on coated trailer surfaces to protect the free edges from delamination.


    • ach points to your deck at 1 inch intervals in a low profile design

    • Add tie-down attach points to your deck at 1 inch intervals in a low profile design

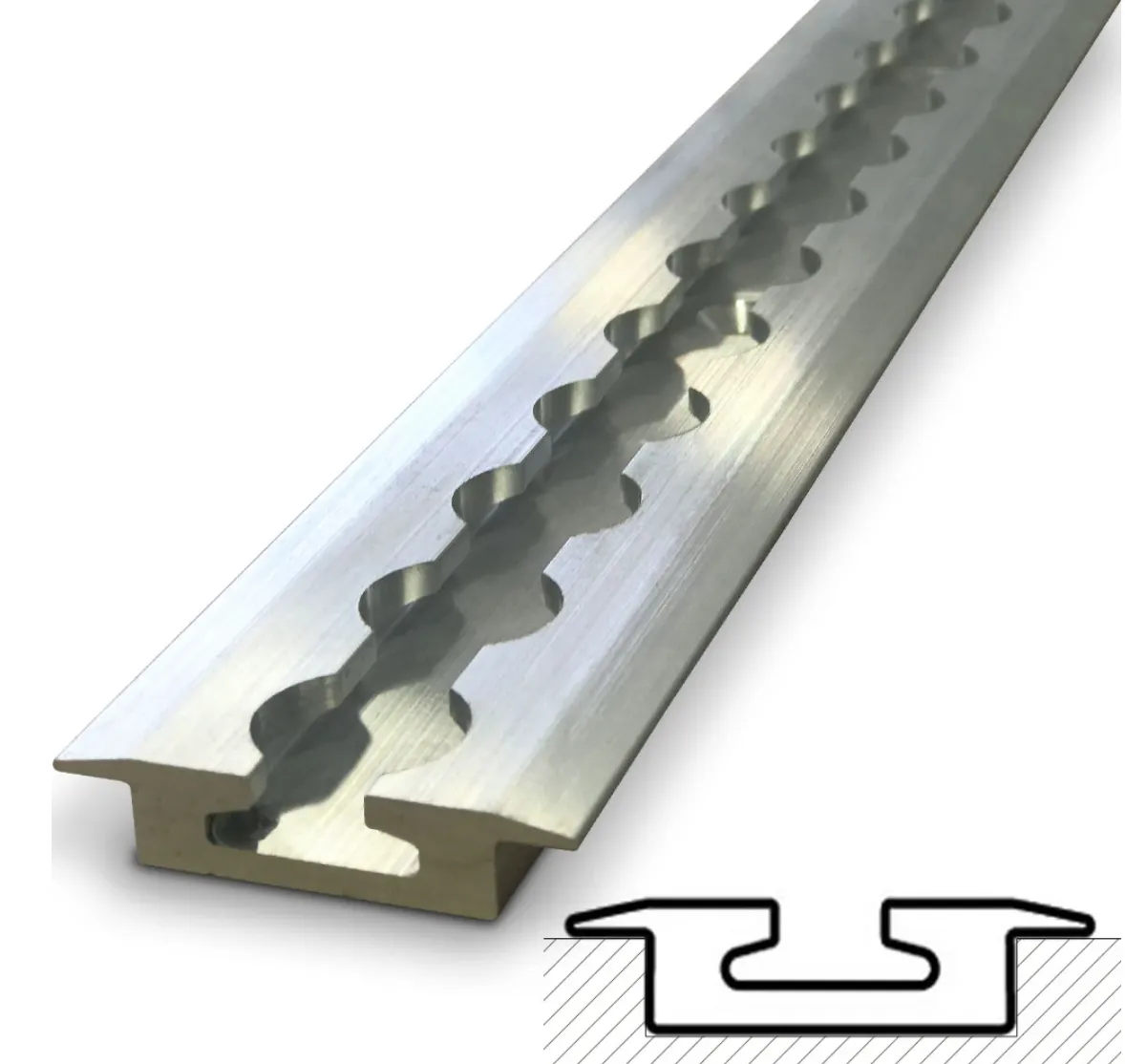

    • Recessed track with top flange protects cut surface and provides clean finish

    • Tested to 3000lb Minimum Breaking Strength in vertical pull

    • Remove attachments when a smooth surface is desired

    • Made in the USA!

  • Recessed track with top flange protects cut surface and provides clean finish
    Tested to 3000lb Minimum Breaking Strength in vertical pull
    Remove attachments when a smooth surface is desired
    Made in the USA!

Strength to Count On

Our patented, aircraft-grade aluminum VersaTie track is designed to a 3000lb Minimum Breaking Strength (MBS) in vertical pull and a 2000lb MBS at 45°, giving you the capability to handle the heaviest load. There's an attach point every inch, so you can find the perfect anchor points to tame even the most unweildy load.

Custom Look Without the Cost

Our VersaTie track is sleek and stylish, because we precision mill each from a single extrusion of aircraft-grade aluminum. In fact, we offer track lengths up to 16 feet—the longest in the industry!

A Wide Selection of Attachments available

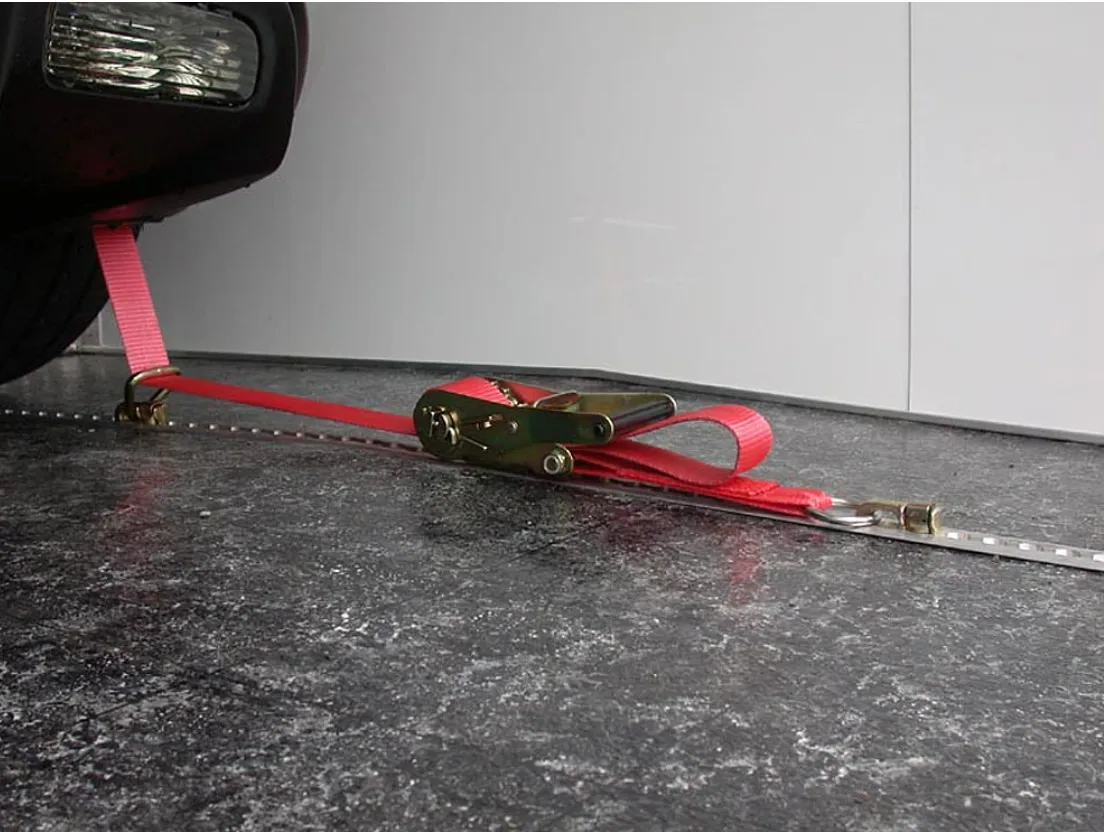

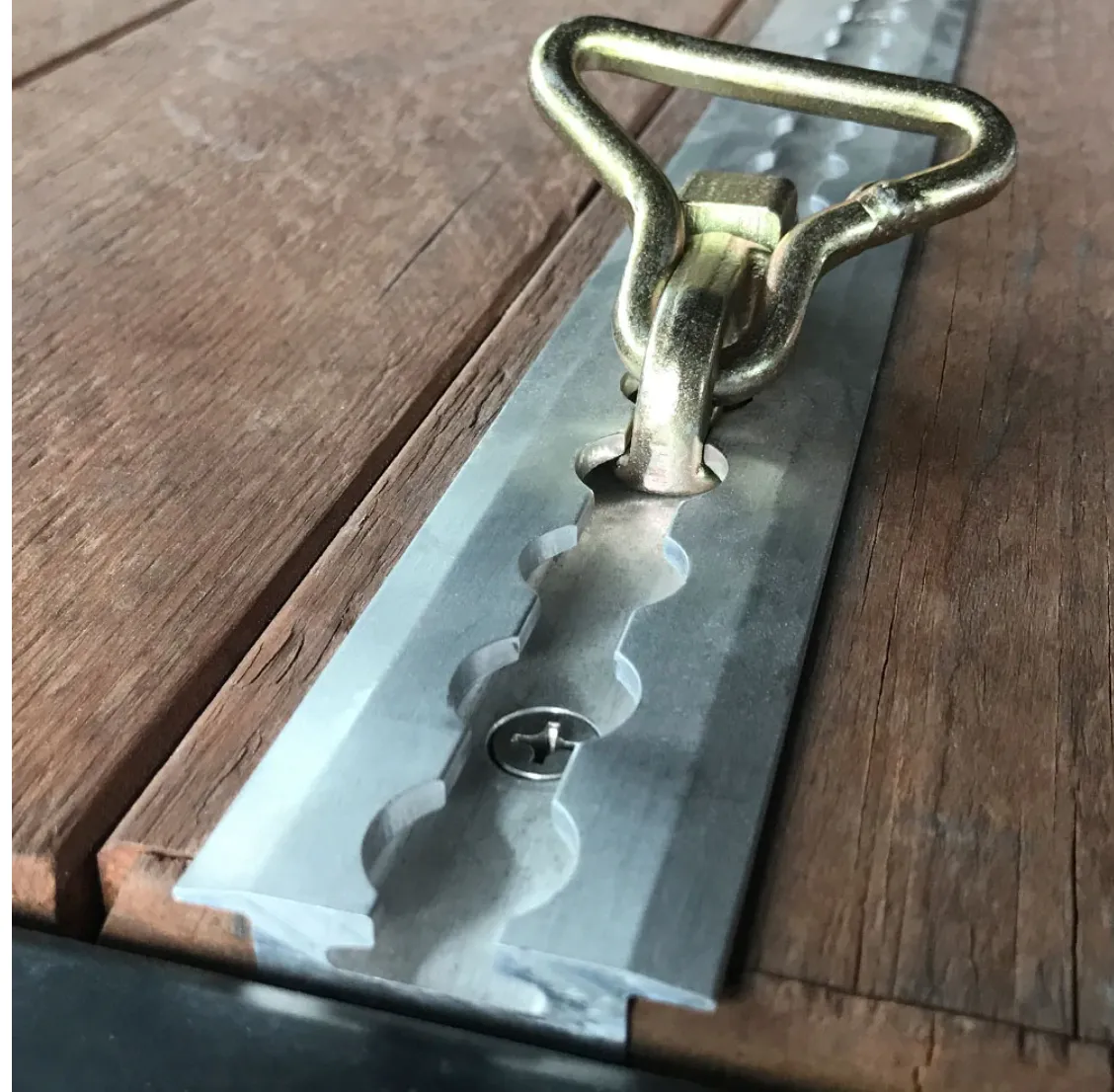

The value of a track system is in its flexibility. This includes our full complement of fittings to accomplish most tasks, from tie-down rings to removable threaded studs. How you use your VersaTie track system is only limited by your imagination.

Made in the USA

All VersaTie tracks are fabricated right here in the USA. This allows us to have better quality control, quicker turn-around time on custom orders and it also supports American jobs!

Note Track Installation: Track does not include mounting holes. We recommend attaching the track to your structure using 1/4" Stainless Steel countersink fasteners on 6 inch spacing.

When determining fastener length, include 1/8 inch track thickness to the thickness of the nut, washer and structure. Ensure fastener is sufficient length to will engage the entire thickness of the nut when installed. For pre-drilled tracking and mounting hardware, check out our VersaTie Track Kits.
