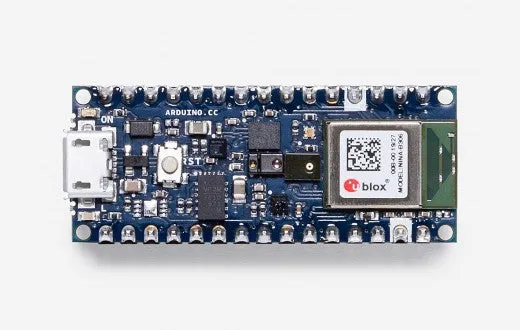

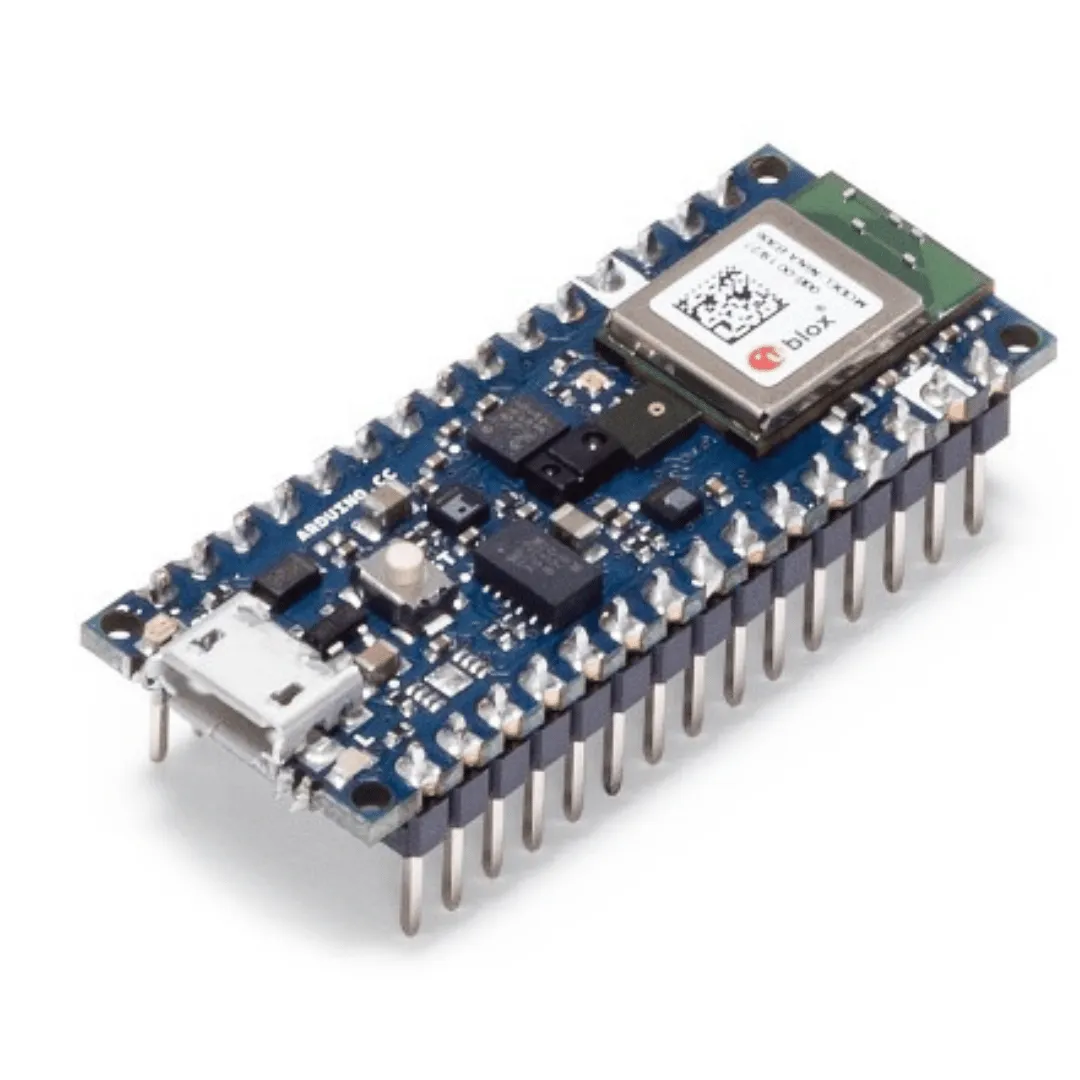

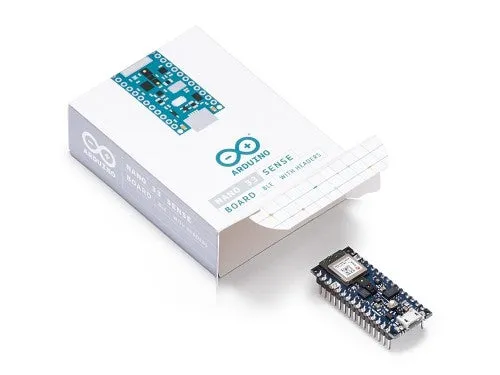

The Nano 33 BLE Sense with headers comes with the soldered header. It is Arduino’s 3.3V AI enabled board in the tiniest available form factor i.e. 45x18 mm!
If you are not aware then have a look at The new addition also has BLE with onboard sensors as well WiFi&BLE IoT board.
The Arduino Nano 33 BLE Sense is a completely new board on a well-known form factor. It comes with a series of embedded sensors:
1. 9 axis inertial sensor: what makes this board ideal for wearable devices
2. Humidity, and temperature sensor: to get highly accurate measurements of the environmental conditions.
3. Barometric sensor: you could make a simple weather station
4. Microphone: to capture and analyse sound in real time
5. Gesture, proximity, light colour and light intensity sensor: estimate the room’s luminosity, but also whether someone is moving close to the board.
Resources used for programming:
- Download software :
- Getting starter guide:
- Step by step examples:
- Programming reference:
The Arduino Nano 33 BLE Sense is based on the nRF52840 microcontroller.
Technical Specifications of Arduino Nano 33 BLE Sense:
| Microcontroller | nRF52840 |
| Operating Voltage | 3.3V |
| Input Voltage (limit) | 21V |
| DC Current per I/O Pin | 15 mA |
| Clock Speed | 64MHz |
| CPU Flash Memory | 1MB (nRF52840) |
| SRAM | 256KB (nRF52840) |
| EEPROM | none |
| Digital Input / Output Pins | 14 |
| PWM Pins | all digital pins |
| UART | 1 |
| SPI | 1 |
| I2C | 1 |
| Analog Input Pins | 8 (ADC 12 bit 200 ksamples) |
| Analog Output Pins | Only through PWM (no DAC) |
| External Interrupts | all digital pins |
| LED_BUILTIN | 13 |
| USB | Native in the nRF52840 Processor |
| IMU | LSM9DS1 () |
| Microphone | MP34DT05 () |
| Gesture, light, proximity | APDS9960 () |
| Barometric pressure | LPS22HB () |
| Temperature, humidity | HTS221 () |
| Length | 45 mm |
| Width | 18 mm |
| Weight | 5 gr (with headers) |
