Name: AC Infinity CONTROLLER 1, Pre-Set Thermal Trigger for USB Fans and Devices
SKU: 72997

Description

Preset Temperature Trigger: Comes with a corded thermal probe designed for USB fans and devices. This trigger also controls up to six AC Infinity Cabinet and USB Fans (please see compatibility details below). It is programmed with four preset temperature triggers, as well as an ON and OFF mode.

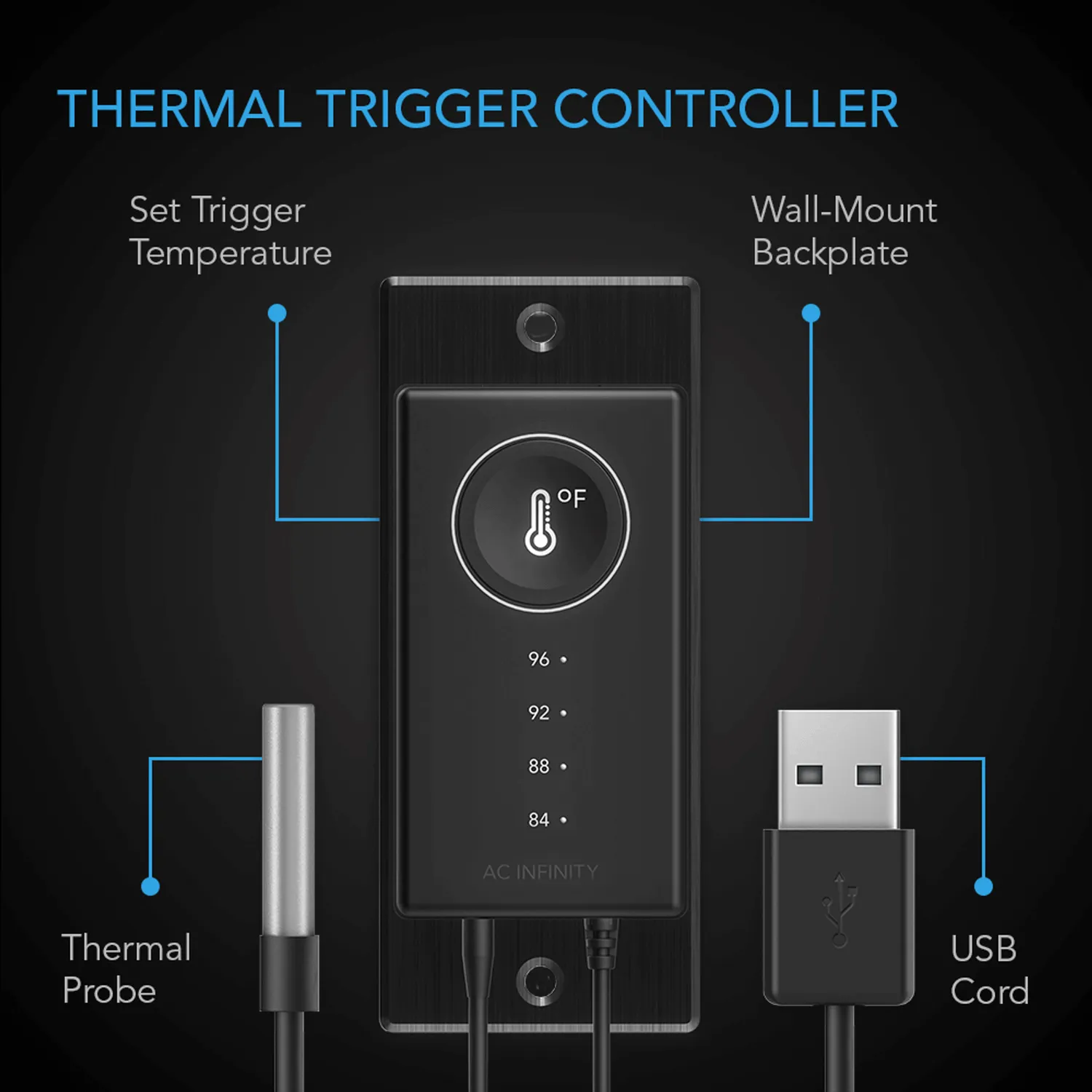

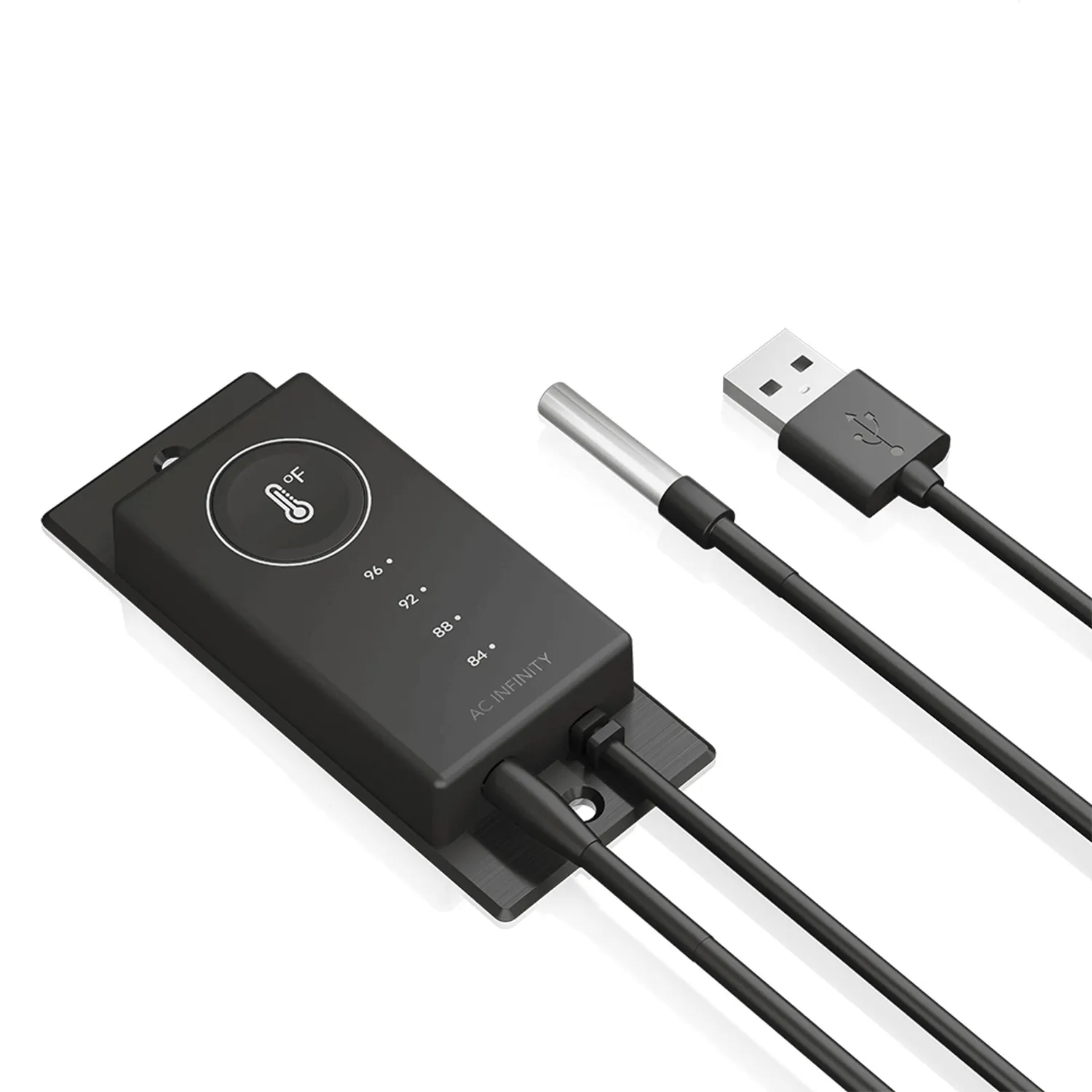

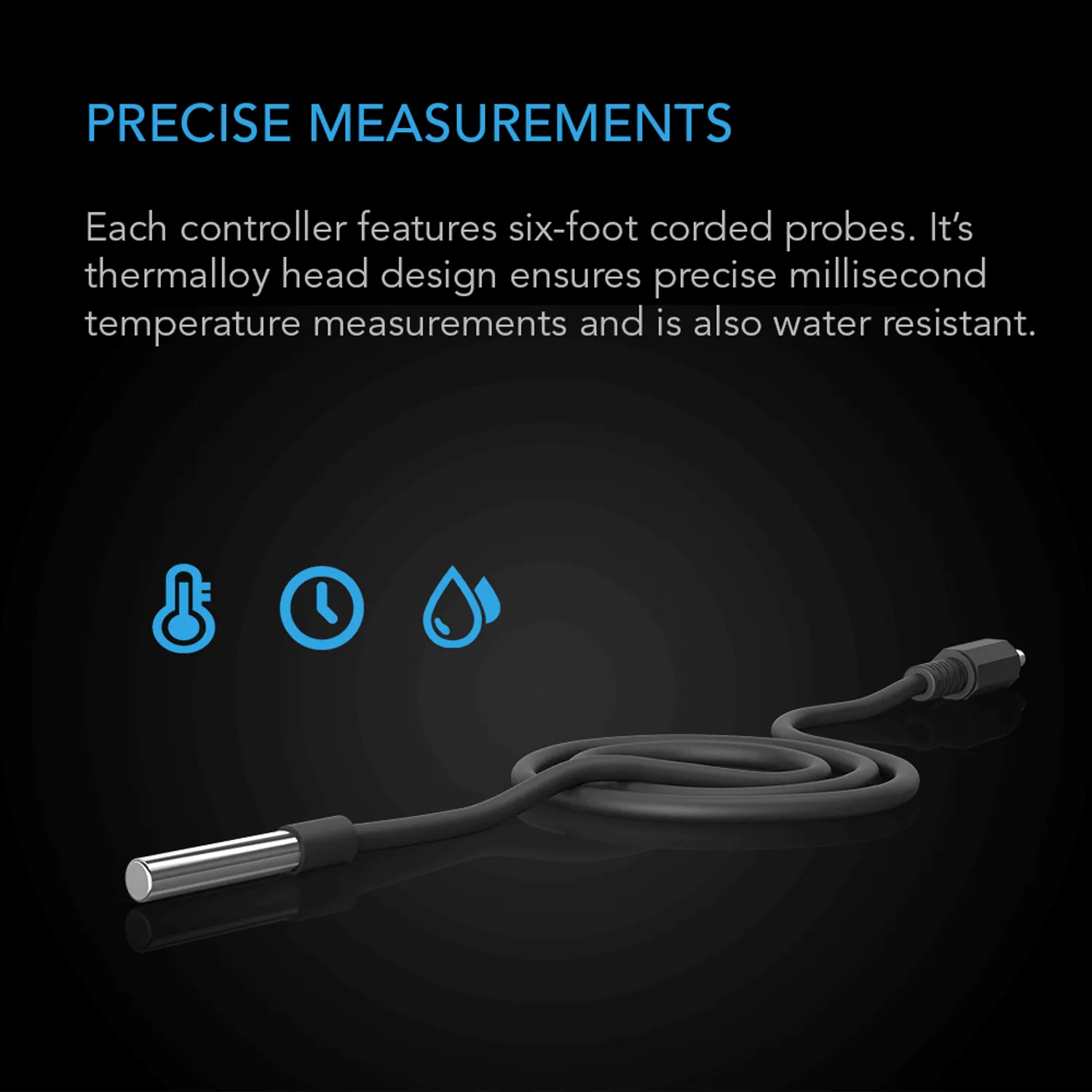

Surface Mount Design: The unit measures 3.2 by 1.4 by 0.5 inches. It has an aluminum back-plate for surface mounting onto wall panels and cabinets and includes a 6-foot precision waterproof temperature probe. The kit is complete with a thermal trigger unit, thermal probe, mounting screws, and an instruction manual.

Programming: This controller has four pre-set temperature triggers at 84°F, 88°F, 92°F, and 96°F. It also includes a 4°F buffer to prevent the fans from being turned on and off too rapidly due to minor temperature fluctuations.

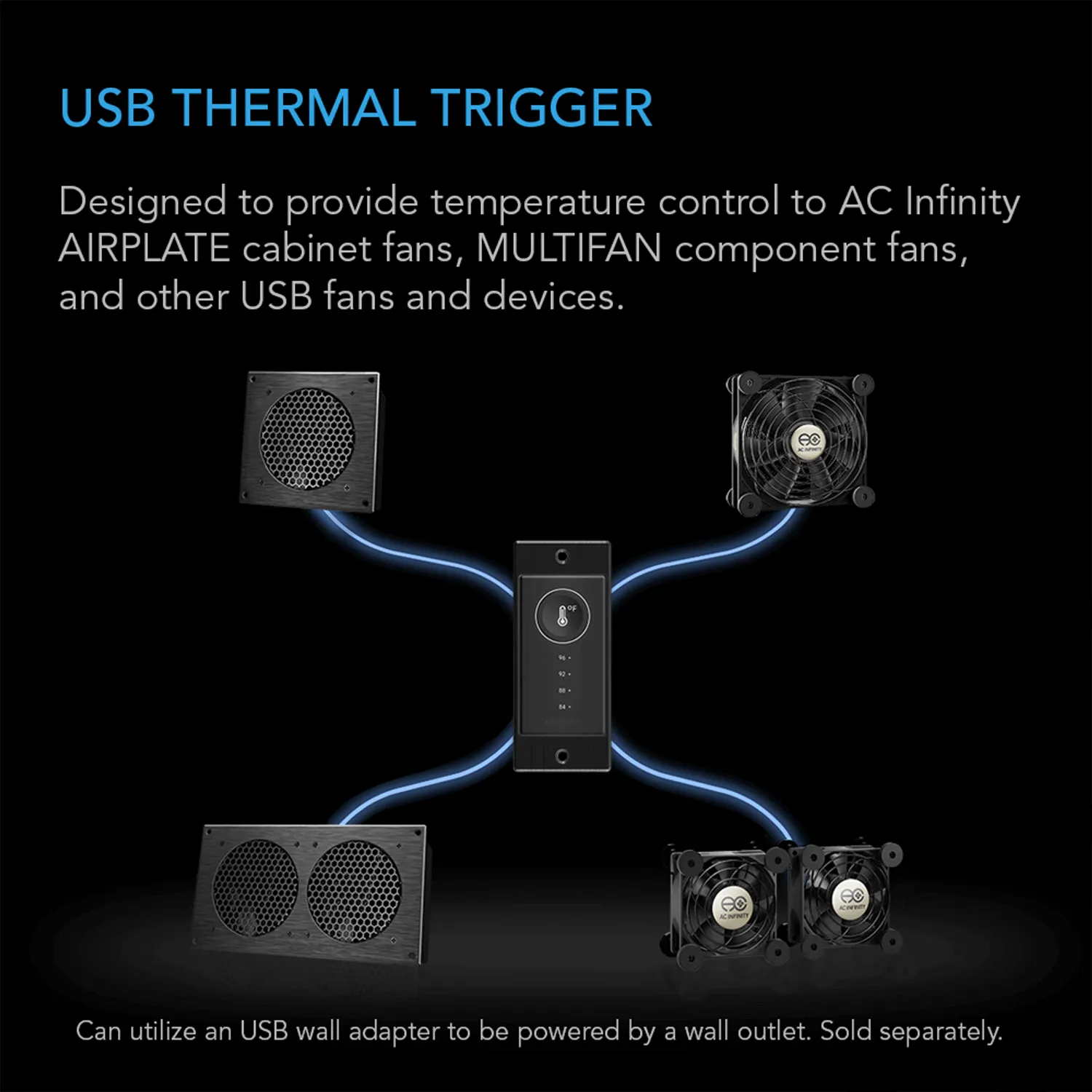

Compatibility: The Controller 1 can power up to 10 watts worth of USB devices and fans, including AC Infinity AIRPLATE and MULTIFAN Series fans. This is approximately equivalent to six fans, but please note that some models contain more than one fan. For instance, the dual fan system in the AIRPLATE S7 or MULTIFAN S5, has two fans, and the controller can only power up to three of these models for a total of six fans. The controller can also use the USB wall adapter that comes with AIRPLATE S-series fans and is powered through an outlet.

Specifications

Manufacturer: AC Infinity Inc.

Product Name: Pre-Set Thermal Trigger

Product Model: AC-PCA1

UPC Code: 819137020351

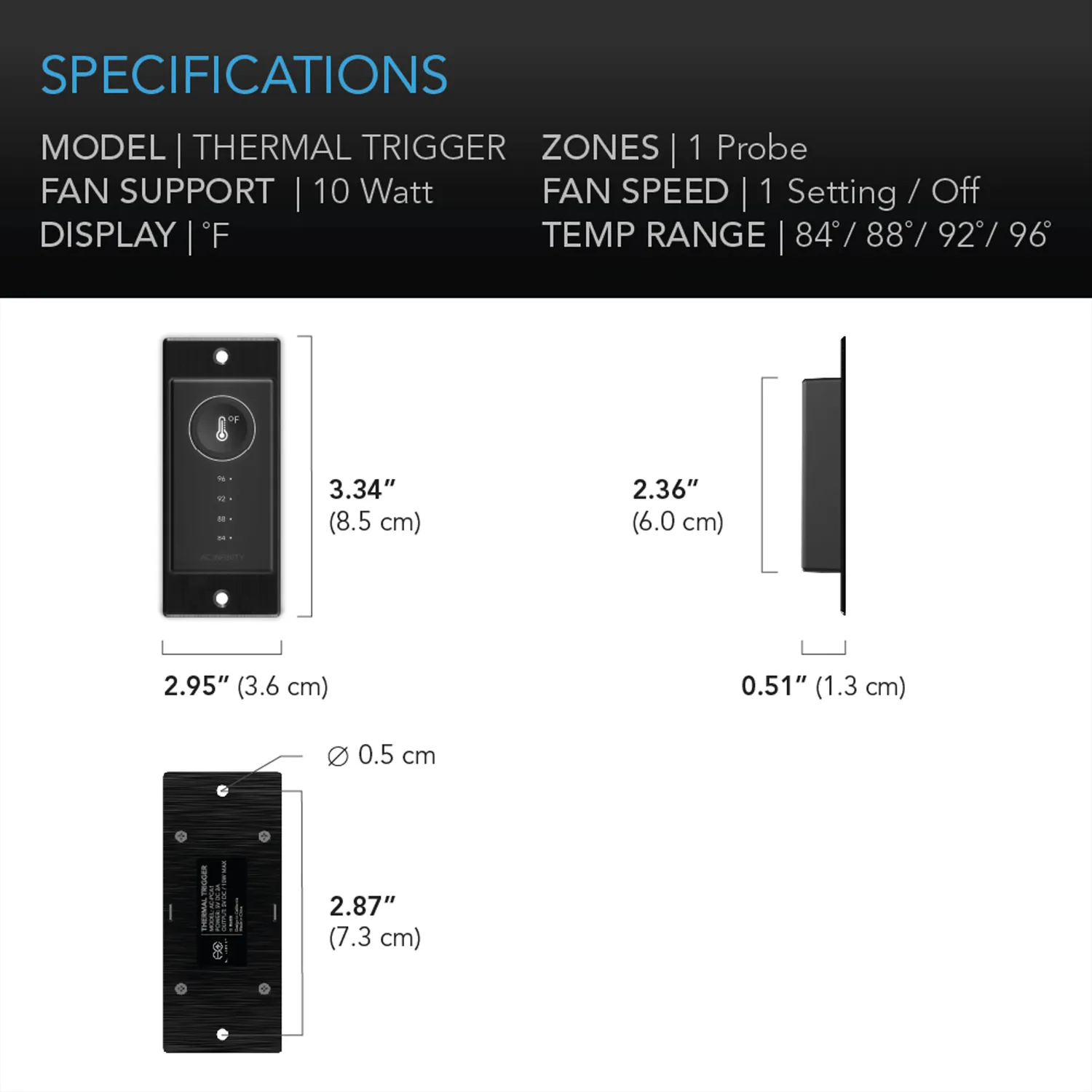

Product and Mounting Dimensions

Total Dimensions: 3.25 x 1.4 x 0.5 in.

Backplate Dimensions: 3.25 x 1.4 in.

Hole to Hole Distance: 2.87 in.

Screw Hole Size: Ø 0.119 in.

Cord Length: 72 in. (6 feet)

Thermal Probe Length: 72 in. (6 feet)

Product Performance and Technical Specs

Maximum Fans Controlled: 6

Max Power Supported: 10 W

Programming Temperatures: 32 to 140°F

Operating Voltage: 5V DC

Power: 10 W

Current: 2 A

USB Outlet Input: 5V DC

Operating Humidity: 35 to 85% RH
